Ventilation
Why Ventilation is important and required for your roof?
- Ventilation is a requirement of the Canadian Building Code of Canada
- Ventilation is a criteria required by shingle manufacturers in order to respect their warranty
The two fundamental benefits of an effective attic ventilation system are:
Both benefits result in energy savings, greater homeowner comfort,
and higher integrity of the dwelling.
Summer:
Summer
heat, trapped in the attic, creates a furnace effect, heating ceiling
insulation, which then conducts heat through to the ceiling, and this
heat is then radiated downward to persons and objects in the rooms
below. This is why it is much warmer upstairs in the bedrooms than
downstairs in the basement!
Other problems that arise by this are the curling, or the bleeding of
shingles, and the warping of the sheathing. The air conditioner is
working continuously to cool down the living area.
Winter:
Winter conditions bring a different type of problem. During the cold
months of the year, the air inside the home is warmer and carries more
water vapour than the colder, dryer air in the attic.
Cooking, laundry, showers, humidifiers and other activities using water
contribute to this condition. There is a strong natural force, termed
“vapour pressure”, that causes water vapour to migrate from
high-humidity air or materials to low-humidity air. This migration of
water vapour passes through ceilings, insulation and wood and even
successfully circumvents a vapour barrier. It moves into the attic space
where it can readily condense into liquid water on the cooler structural
members-rafters, trusses, and especially the cold roof sheathing.
Condensation moisture within an attic or ceiling space can dampen
and compress insulation. Even small amounts of condensation can
have a substantial effect in reducing the "R" value of the insulation,
thus
creating faster heat loss into the attic space. This will eventually
lead
to mould, mildew, rot, ice damming, etc…
Solution: A Cold Roof
Though a number of factors enter into the formation of condensation
and ice dams, the fundamental problem is undesirable attic heat,
which results in a warm roof space. The solution is to maintain a cold
roof. It is essential that the air in the attic be the same or as close
to temperature of the air outside.
Most common contribution to moisture within an attic space:
The most common practices in the building industry which is a major
contribution to moisture problems is the discharging of washroom fans,
hood ranges, dryer vents and air exchangers, down through the soffits.
This practice defeats the purpose of moisture control within a building
envelope. The soffits are the air intake for attic ventilation, so when
exhaust fans are discharging down into the soffit areas, most all of
this warm and humid air comes right back into the attic space, thus
contributing to ice damming and moisture problems, which can eventually
lead to mould & mildew and rot, not to mention the loss of r-value of
your insulation. Try and image a washroom fan with an evacuation of 60
cfm. This is 60 cubic feet of warm and humid air per minute that goes
right back into your attic space. Now image if you have two or more with
a higher cfm! All exhaust fans which protrude through the ceiling into
the attic space should exhaust out through the roof by using a roof
exhaust vent especially designed and built for this kind of situation.
Access doors leading into the attic space should be properly insulated
to the same r-value or more to what the attic itself is. All heating
ducts, potlights, exhaust fans, and plumbing vent stacks should all be
verified and properly insulated to reduce unnecessary heat loss into the
attic space. The insulation should never obstruct air flow from the
soffit air intake area at the eaves, this will prevent attic air
circulation.
Which Ventilation System to choose – Static Ventilator or
Passive Ventilator:

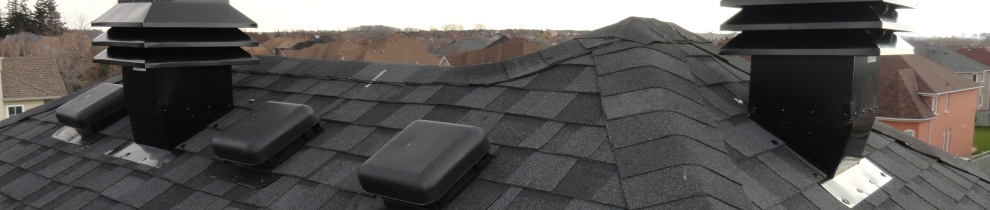

Few people recognize the difference between a passive ventilator and
a static ventilator. A static ventilator allows air exchange, where
as a passive ventilator allows for evaporation. Passive ventilators
would be low profile vents like ridge vents, mushroom vents, or even
a gooseneck ventilator for flat roofs. They do not allow for air
exchange but merely let the air evaporate out through them. The air
enters through the soffits into the attic, then gradually escaping
out through the ventilator.
The drawbacks:
A passive vent releases the attic air but is unable to exchange or
replace it frequently. Being so low, it is usually buried by snow
after the first snowstorm, rendering the ventilation system
obsolete, and that, just when you need it the most. No protection
against water or snow infiltration, especially in windy conditions.
A Static Ventilator would be turbine ventilators which can replace the attic air, and function with the combination of wind and pressure differential,
creating a chimney effect, replacing the attic air.
Static Ventilators Available in these standard
colours: Black, Brown and Grey
|
Black
|
Brown
|
Grey
|
